Electropermanent workholding & lifting
Electric to switch. Permanent to hold.
Magnetic workholding and lifting equipment — made in India, sold to the world. One impulse clamps or grips; permanent magnetism holds, power or no power.
The principle
One impulse.
Then zero power.
An electropermanent magnet spends electricity only in the instant of switching. Between switches the permanent magnets carry the whole load — which is why a power cut, a severed cable or a flat battery cannot drop your workpiece.
Step through it yourself, then cut the power and watch the hold survive.
01 · Pulse on
A fraction-of-a-second current aligns the reversible poles.
02 · Hold
Permanent magnets carry the full force. No current at all.
03 · Pulse off
A reverse impulse cancels the field and releases instantly.

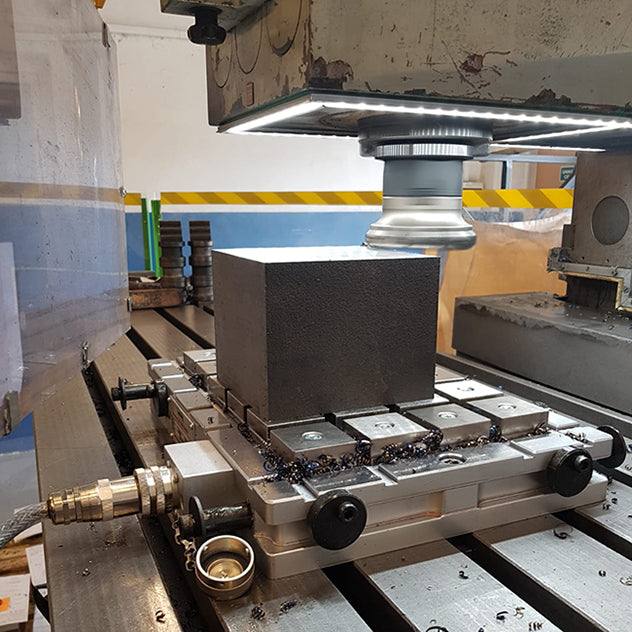

Product 01 · Magnetic workholding
Magnaslot
Electropermanent magnetic chuck — a complete magnetic machine bed.

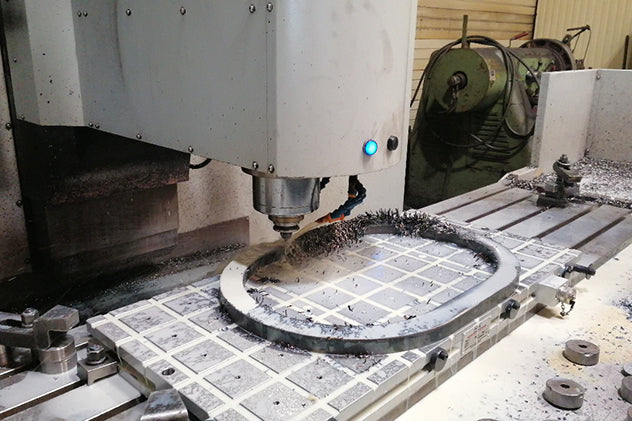

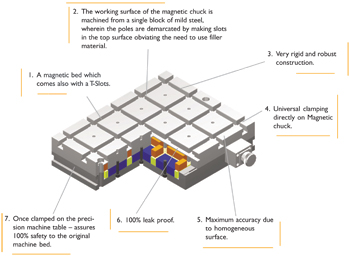

Not a chuck bolted onto your machine — a magnetic bed machined from a single block of solid steel, its poles demarcated by cut slots. There is no epoxy filler to bulge, burn or leak, so the face spreads machining heat and keeps its accuracy. One impulse clamps the job; it then holds at zero power and shrugs off hot chips and coolant.
- Holding force
- ≈ 160 N/cm² (>100 t/m²) — up to 17 t on 400 × 600 mm
- Precision
- Plane-parallelism ≤ 0.02 mm; ≤ 0.01 mm with pole extensions
- Fail-safe
- Full holding force retained on power loss
- Auto-shimming

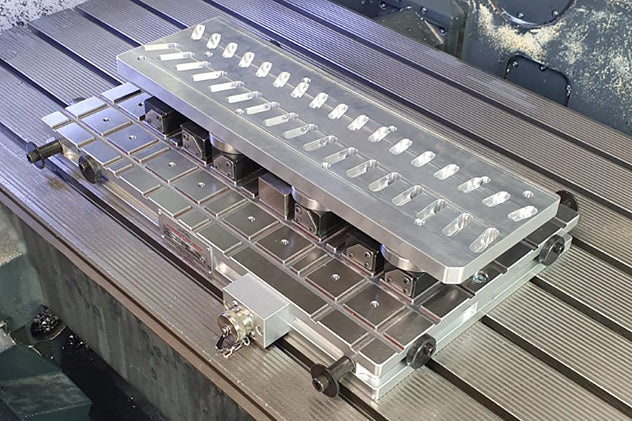

- Spring-loaded pole extensions support bent or uneven stock
- Supply
- 440 V AC standard; 220 / 380 / 400 / 480 V AC, 50–60 Hz on request
- Applications
- Milling, turning, drilling, grinding, gang milling, turbine blades, EDM (flat version)
No epoxy
No expansion, deformation, burning or leaking.

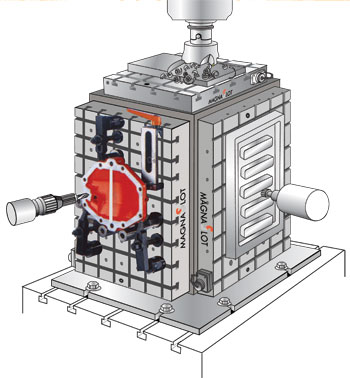

Five faces, one setup
Nothing clamped over the job; the cutter runs free.
Variable power
Dial the field down for thin workpieces.
75T is two chucks
T-slots clamp non-ferrous jobs mechanically.
Full model & pole-size table Open / close
| Model | Pole size | Min. job thickness | Min. pole contact | Best for |
|---|---|---|---|---|
| Magnaslot 32 | 32 × 32 mm | 6 mm | 9 alternate poles | Small and thin components |

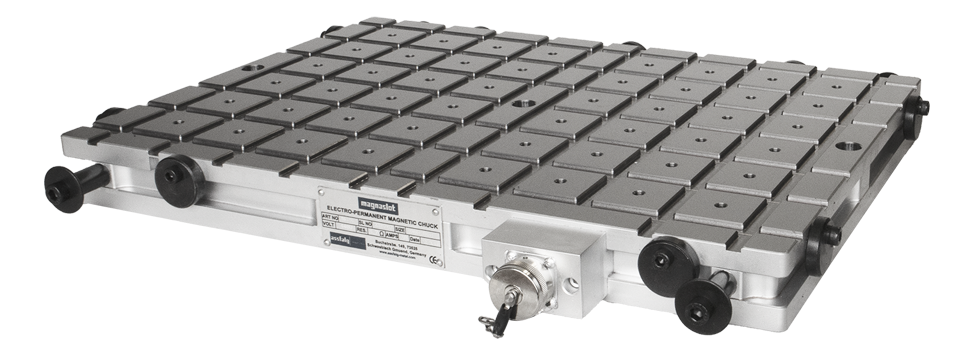

| Magnaslot 50 | 50 × 50 mm | 10 mm | 8 alternate poles | Small–medium, rough parts |
| Magnaslot 75 | 75 × 75 mm | 20 mm | 4 alternate poles | Medium–large, heavy-duty cutting |
| Magnaslot 75T | 75 × 75 mm + T-slots | 20 mm | 4 alternate poles | Mixed ferrous / non-ferrous work |
Standard plate sizes 300 × 430 mm to 600 × 990 mm, plus a reduced-density ECO range and custom sizes. Integrates with pallet-changing and FMS systems.
Product 02 · Magnetic lifting
SafeBat
Battery electropermanent lifting magnet — no cable, no external power.
A crane magnet with no cable and no external power. The battery is spent only on switching the magnet on and off — the load is then held by permanent magnetism, so it stays gripped even if the battery goes flat mid-lift. Dual poles handle flat plate and round bar alike.
- Safety factor
- 3 : 1 SWL — load-verification display on SF models
- Per charge
- ≈ 1,000 on / off switching cycles
- Handles

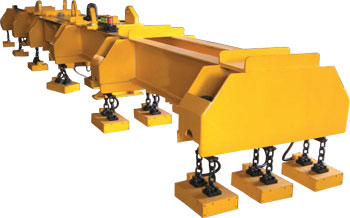

- Flat and round stock; long bars and sheets on the ACE beam
- Switching
- Automatic sequential switching by contactless relay; optional radio remote
- Battery
- Maintenance-free sealed cells, built-in charger with overcharge protection, low-battery warning
- Applications
- Stock yards, flame and plasma cutting tables, loading and unloading machine tools
Dead battery, held load
Power switches it; magnets hold it.

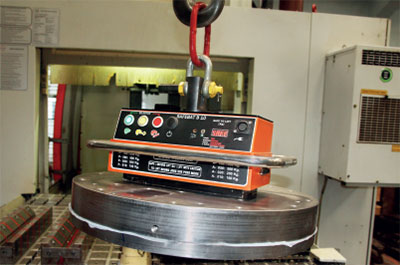

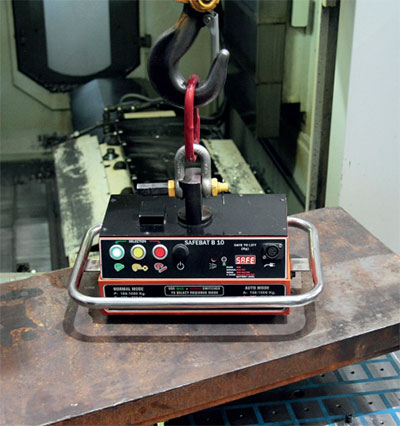

Flat and round
One magnet for plate and bar stock.
No trailing cable
Hooks onto any crane, moves anywhere.
Three power settings
Match the field to the sheet.
Full capacity table Open / close
| Model | Flat load | Round load | Load display | Notes |
|---|---|---|---|---|
| SB200 | 200 kg | On request | — | Light plate and bar handling |
| SB500 | 500 kg | On request | — | General machine-shop lifting |
| SB950 | 950 kg | On request | — | Heavy plate |

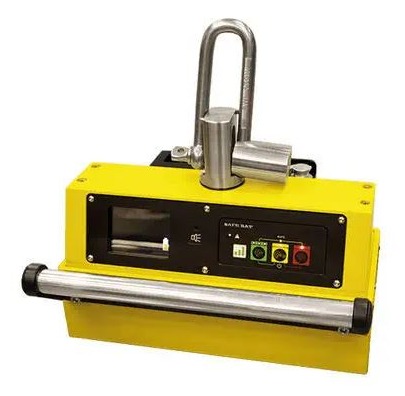

| SB950-SF | 950 kg | On request | Yes | Load verification before the lift |
| SB1000 | 1,000 kg | On request | On request | Plate handling |
| SB3000 | 3,000 kg | On request | On request | Heavy plate and billets |
| SB5000 | 5,000 kg | On request | On request | Heavy plate and billets |
| SB10000 | 10,000 kg | On request | On request | Heaviest single-magnet lifts |
| EPMBL beam | up to 1,500 kg | — | On request | Sheets 500–4,000 mm, from 3 mm thick |
| EPMB beam | up to 10,000 kg | — | On request | Heavy plate and long stock |
Round-stock capacities depend on diameter and surface condition — send us the job and we will confirm the safe working load.
Where to buy
Order direct, or through your regional partner
Both products are designed and built by us in India and supplied worldwide. In India and across most markets you buy directly from our team; in Europe, the United States and South-East Asia our partners sell and support the same machines under their own brands. Anywhere else, write to us and we will ship.
Buy directly from us. Pricing, sizing and technical support come from our own engineers.
Send an enquiry →Sales, technical support and supply across Europe for both products. Deutsche Anfragen bitte an Assfalg.
assfalg-metal.com →Regional supply and service for South-East Asia.
Ask for a regional contact →The company
Inventor-led magnetic engineering
Shree Magnets Pvt. Ltd. carries forward a line of work that began with the Sarda Magnets Group in 1958 — among India's first industrial magnet makers. Today we are an independent, founder-led company designing our own electropermanent machines in Kolkata and shipping them worldwide.
The Magnaslot chuck is protected by patent EP1874504 and was developed here, not licensed in. Installations include heavy-engineering plants such as BHEL.
Designed
Our own electropermanent designs, engineered in-house and patented.
Solid-steel construction
Machined steel working faces instead of epoxy — built for real machining conditions.
Export-grade, made in India
The same machines our partners sell in Germany and the US ship to Indian shops direct.
Talk to the engineers
Technical answers come from the people who build the magnets, within one business day.
Enquiry
Tell us the job
Machine, workpiece, load, quantity — whatever you have. A technical requirement, a volume enquiry or a distribution partnership; we reply within one business day.
- Company
- Shree Magnets Pvt. Ltd.
- Works
- Sodepur Barasat Road, Murugacha, P.O. Jugberia, P.S. Ghola, Kolkata 700110, West Bengal, India
- Phone
- +91 98300 58700
